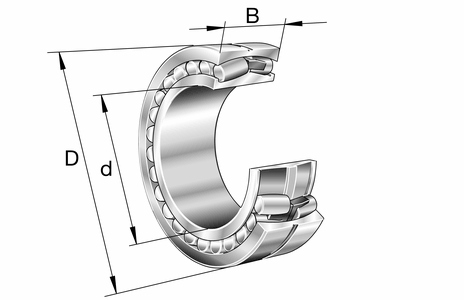

Main Dimensions & Performance Data

d

 710 mm

D

 950 mm

B

 243 mm

Cr

 6600000 N

Cor

 16900000 N

Cur

 1080000 N

Reference speed

 159 rpm

Limiting speed

 550 rpm

Mounting dimensions

da min

 733 mm Shaft shoulder minimum diameter ,

rmin

 6 mm Minimum chamfer size ,

Da max

 927 mm Maximum diameter of housing shoulder ,

ra max

 5 mm Maximum pocket radius ,

ds

 12.5 mm Lubrication hole diameter ,

ns

 23.5 mm Lubrication groove width

Temperature range

T min

 -30 °C Minimum operating temperature

T max

 200 °C Maximum operating temperature

Calculation coefficient

e

 0.24 Fa/Fr corresponds to different X and Y coefficients

Y1

 2.81 Axial dynamic load factor

Y2

 4.19 Axial dynamic load factor

Y0

 2.75 Axial static load factor
