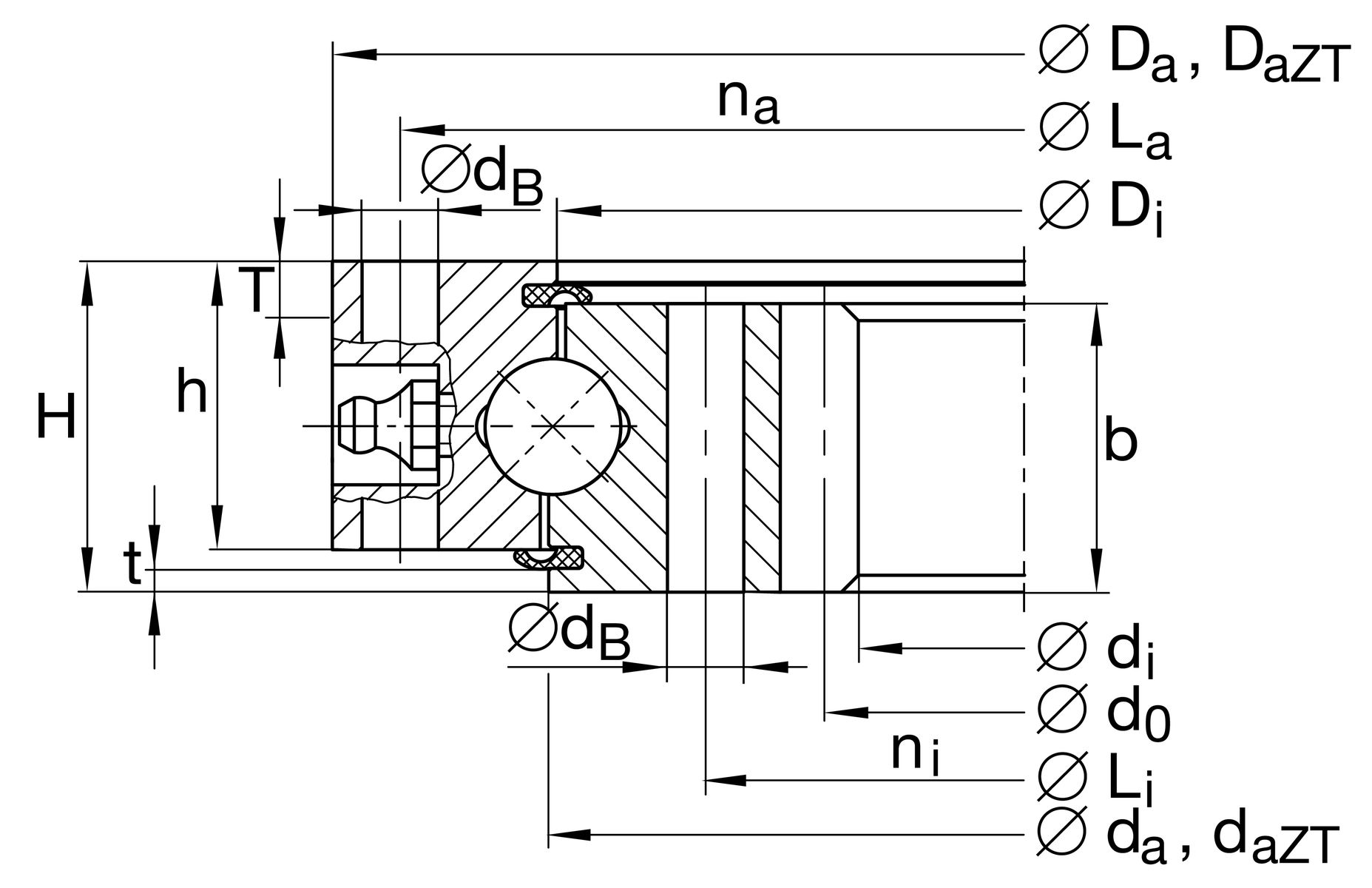

Di
|
419 mm
|
Inner diameter outer ring
|
La
|
462 mm
|
Pitchcircle diameter fixing holes outer ring
|
na
|
16
|
Number of fixing holes in outer ring
|
dB
|
14 mm
|
Fixing bore
|
da
|
421 mm
|
Outside diameter inner ring
|
Li
|
378 mm
|
Pitchcircle diameter fixing holes inner ring
|
ni
|
16
|
Number of fixing holes in inner ring
|
Fr zul
|
117,000 N
|
Max. radial friction locking of the screws
|
m
|
4 mm
|
Modul of gearing
|
z
|
85
|
Number of teeth
|
d0
|
340 mm
|
Pitch circle diameter gearing
|
b
|
34 mm
|
Width gearing
|
Fz norm
|
12,300 N
|
Max. tooth force root fatigue strenght (at a shock factor of 1,2)
|
Fz max
|
17,800 N
|
Max. tooth force against tooth fracture (at a shock factor of 1,35)
|
