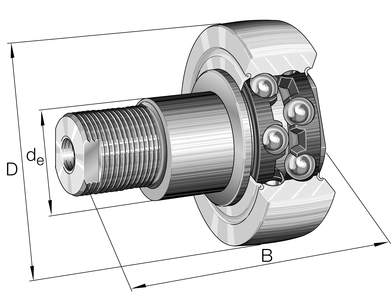

B1 max
|
32 mm
|
Thrust washer maximum width
|
B2
|
56 mm
|
Bolt/Stud Effective Length
|
C
|
20.6 mm
|
outer ring width
|
C1
|
8 mm
|
Outer ring to thrust washer edge
|
d2
|
30 mm
|
Thrust diameter of thrust washer
|
r min
|
1 mm
|
Minimum chamfer size
|
W
|
22 mm
|
Flat width
|
W1
|
17 mm
|
Flat width
|
e
|
1 mm
|
Eccentric
|
Be
|
25 mm
|
Eccentric width
|
g
|
M8X1
|
internal thread
|
lg
|
8 mm
|
thread length (inside)
|
G
|
M20X1,5
|
thread
|
IG min
|
28 mm
|
Minimum thread length
|
R
|
500 mm
|
Outer ring outer surface contour modification radius
|
