Main Dimensions & Performance Data

d

8 mm

D

19 mm

B

12 mm

Cr

7140 N

Cor

12900 N

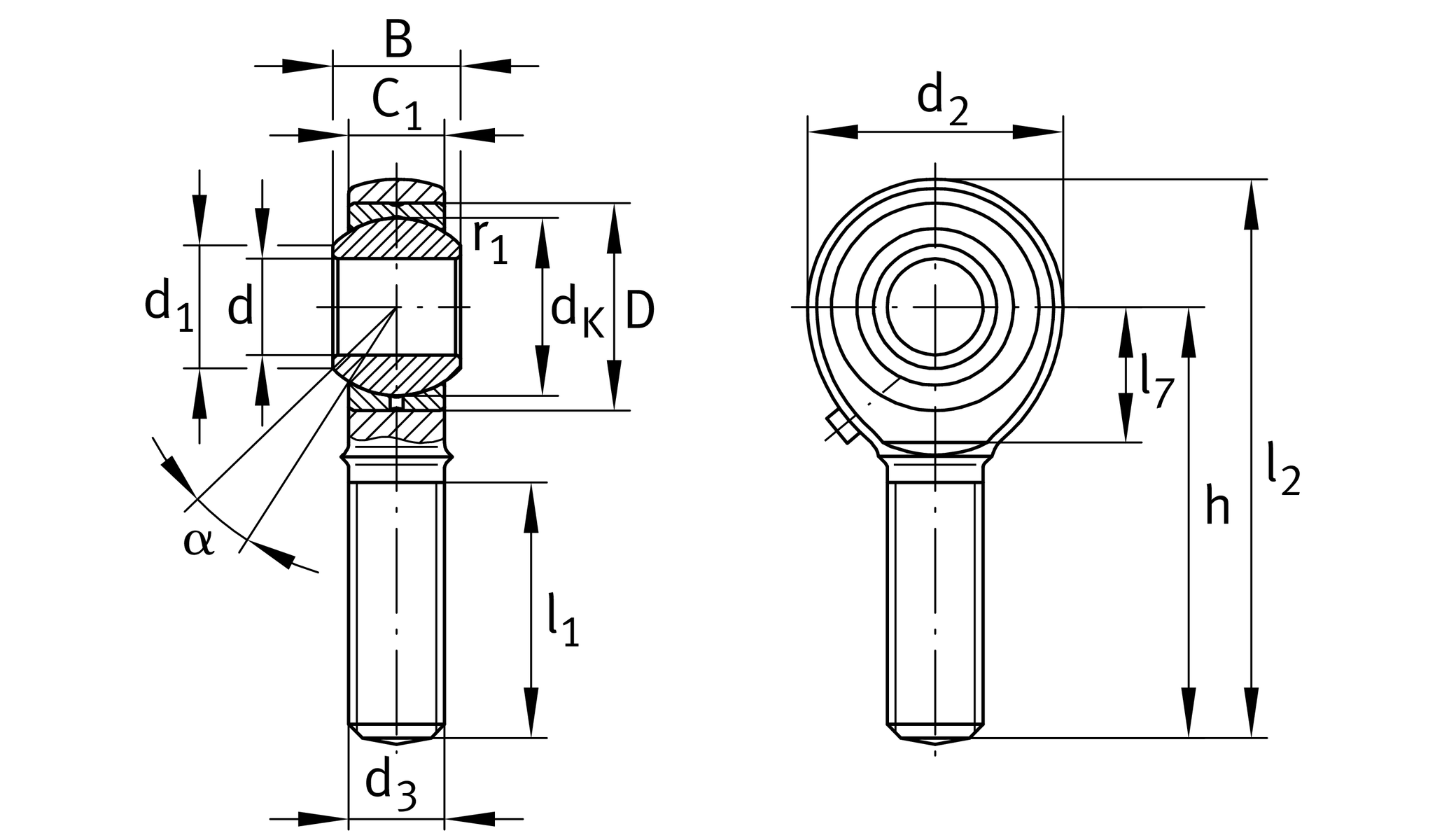

Mounting dimensions

dK

15.875 mm Ball diameter

d1

10.3 mm Inner ring outer flange diameter

d2

24 mm Outer ring diameter

d3

M8 thread size

h

42 mm External thread shank length

C1

9 mm Rod end width

α

14 ° inclination

l1

25 mm External thread shank length

l2

54 mm Overall length of male thread head

r 1smin

0.3 mm margin

Gr

0 - 0,035 mm Radial clearance

dOT

0.015 mm Bearing inner diameter, upper deviation

dUT

0 mm Bearing inner diameter, lower deviation

dT

H7 mm Bearing bore diameter, tolerance

BOT

0 mm Inner ring width, upper deviation

BUT

-0.12 mm Inner ring width, lower deviation

Temperature range

T min

-60 °C Minimum operating temperature

T max

250 °C Maximum operating temperature
