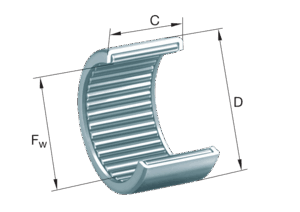

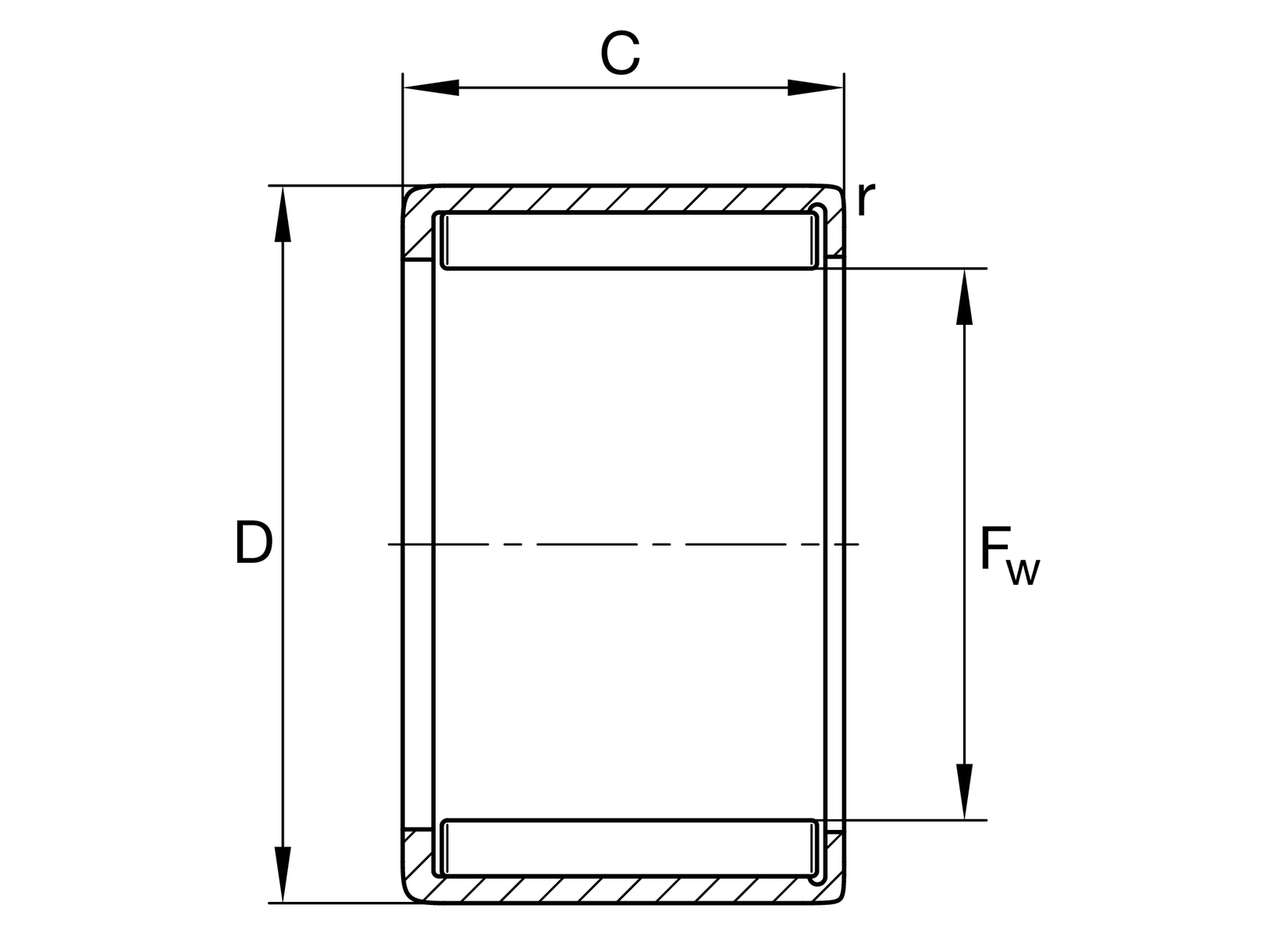

Main Dimensions & Performance Data

Fw

 50 mm

D

 58 mm

C

 20 mm

Cr

 44500 N

Cor

 119000 N

Cur

 16500 N

Reference speed

 3100 rpm

Grease lubrication speed

 2260 rpm

Mounting dimensions

r min

 0.8 mm Minimum chamfer size

Temperature range

T min

 -30 °C Minimum operating temperature

T max

 140 °C Maximum operating temperature
