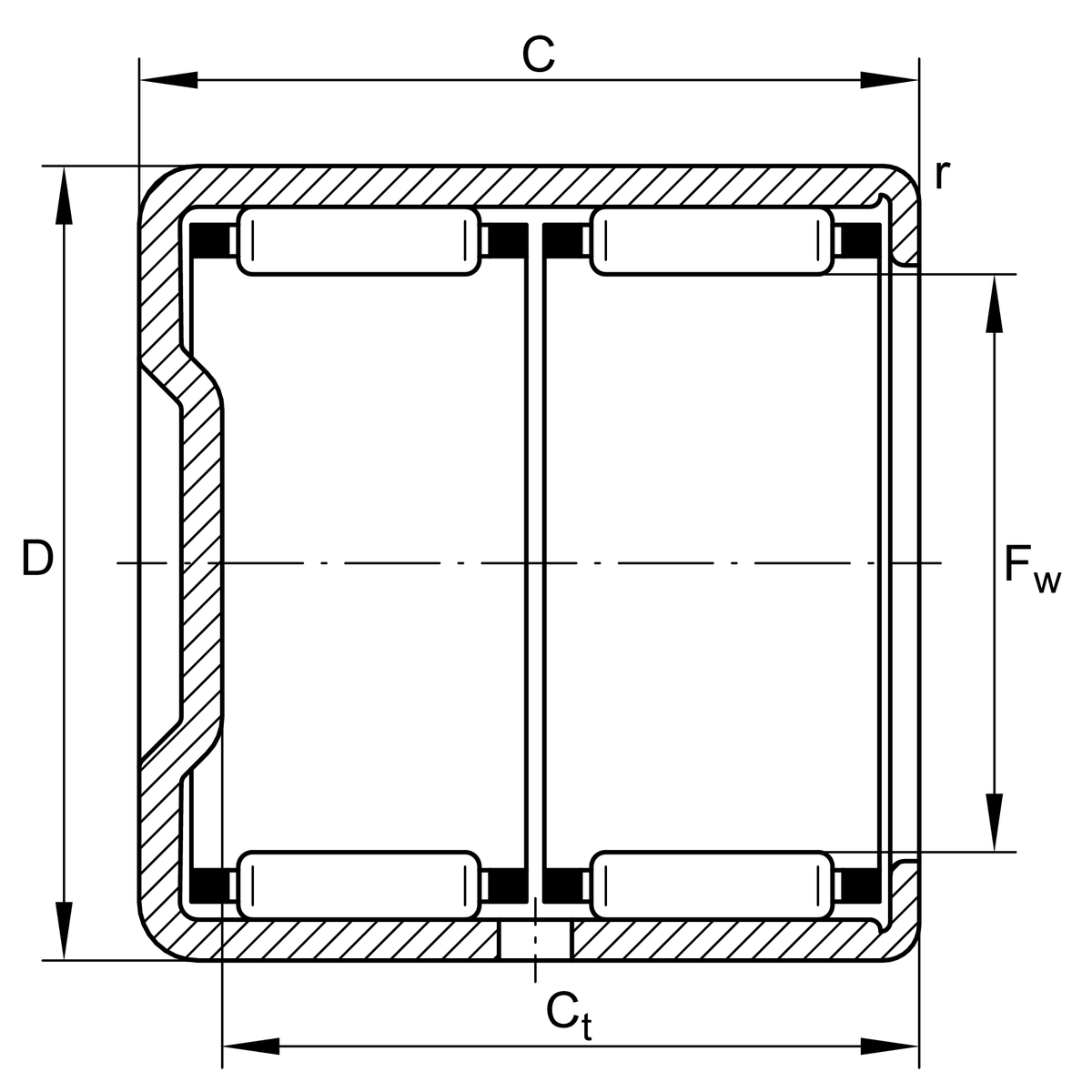

Main Dimensions & Performance Data

d

 37 mm

Fw

 30 mm

C

 38 mm

Cr

 37500 N

Cor

 79000 N

Cur

 10300 N

Reference speed

 6200 rpm

Limiting speed

 8600 rpm

Mounting dimensions

r min

 0.8 mm Minimum chamfer size

Ct min

 35.3 mm Closed drawn cup seat minimum width

Temperature range

T min

 -30 °C Minimum operating temperature

T max

 140 °C Maximum operating temperature
