Main Dimensions & Performance Data
d |
80 mm |
D |
140 mm |
B |
44.4 mm |
Cr |
99000 N |
Cor |
102000 N |
Cur |
5100 N |
Reference speed |
5100 rpm |
Limiting speed |
3650 rpm |

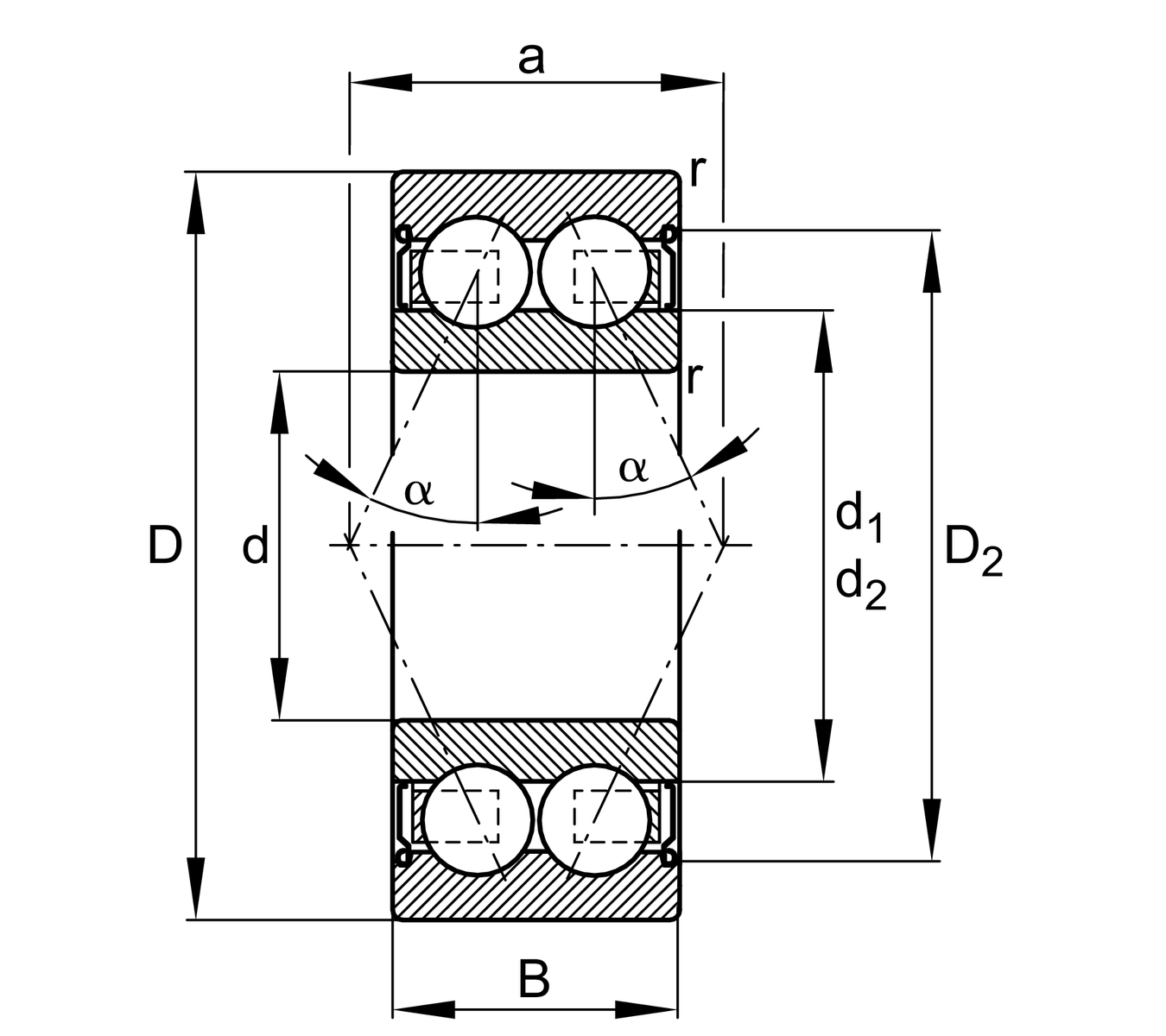

Mounting dimensions
da min |
91 mm | Shaft shoulder minimum diameter |
r min |
2 mm | Minimum chamfer size |
Da max |
129 mm | Maximum diameter of housing shoulder |
ra max |
2 mm | Maximum pocket radius |
D2 |
124.5 mm | Pocket to Outer Ring Inner Diameter |
d1 |
98.5 mm | Inner ring rib diameter |
a |
69.1 mm | Pressure cone tip distance |
α |
25 ° | Contact angle |
Temperature range
T min |
-20 °C | Minimum operating temperature |
T max |
120 °C | Maximum operating temperature |
