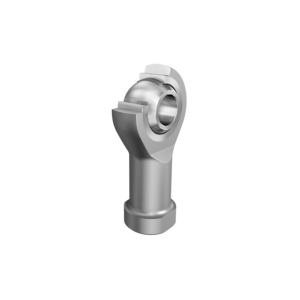

dK
|
12.7 mm
|
Ball diameter
|
d1
|
9 mm
|
Inner ring outer flange diameter
|
d2
|
21 mm
|
Outer ring diameter
|
d3
|
M6
|
thread size
|
d4
|
10 mm
|
Shank diameter
|
h1
|
30 mm
|
Internal thread shank length
|
C1
|
6.75 mm
|
Rod end width
|
α
|
13 °
|
inclination
|
l3
|
9 mm
|
Internal thread length
|
l4
|
40.5 mm
|
Overall length of female thread head
|
l5
|
5 mm
|
Rod end shank length
|
l7
|
10 mm
|
Drilling distance with /axis start
|
d5
|
13 mm
|
Shank diameter，big
|
W
|
11 mm
|
Opening width
|
r 1smin
|
0.3 mm
|
margin
|
Gr
|
0,003 - 0,035 mm
|
Radial clearance
|
dOT
|
0.012 mm
|
Bearing inner diameter, upper deviation
|
dUT
|
0 mm
|
Bearing inner diameter, lower deviation
|
dT
|
H7 mm
|
Bearing bore diameter, tolerance
|
BOT
|
0.012 mm
|
Inner ring width, upper deviation
|
BUT
|
0 mm
|
Inner ring width, lower deviation
|
